New schematic maps of the









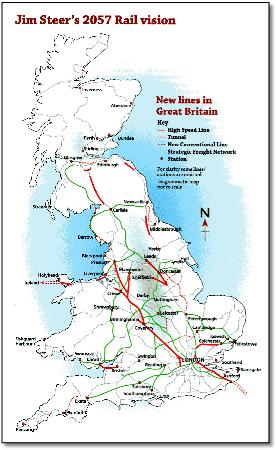

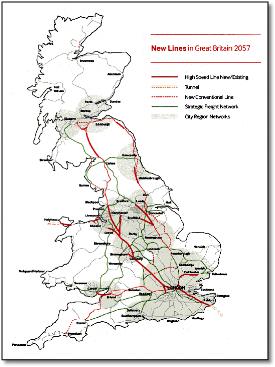

Network outline
Network outline

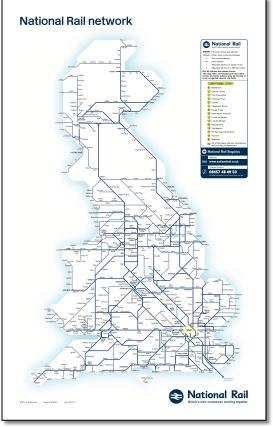

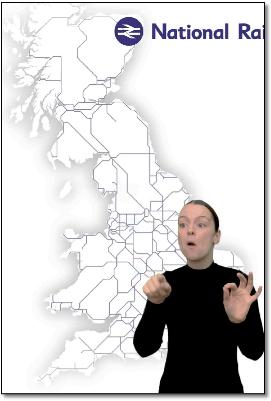

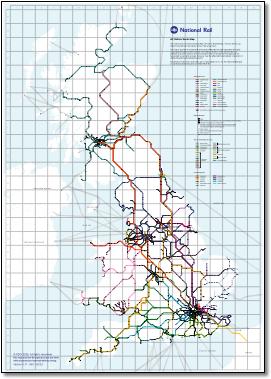

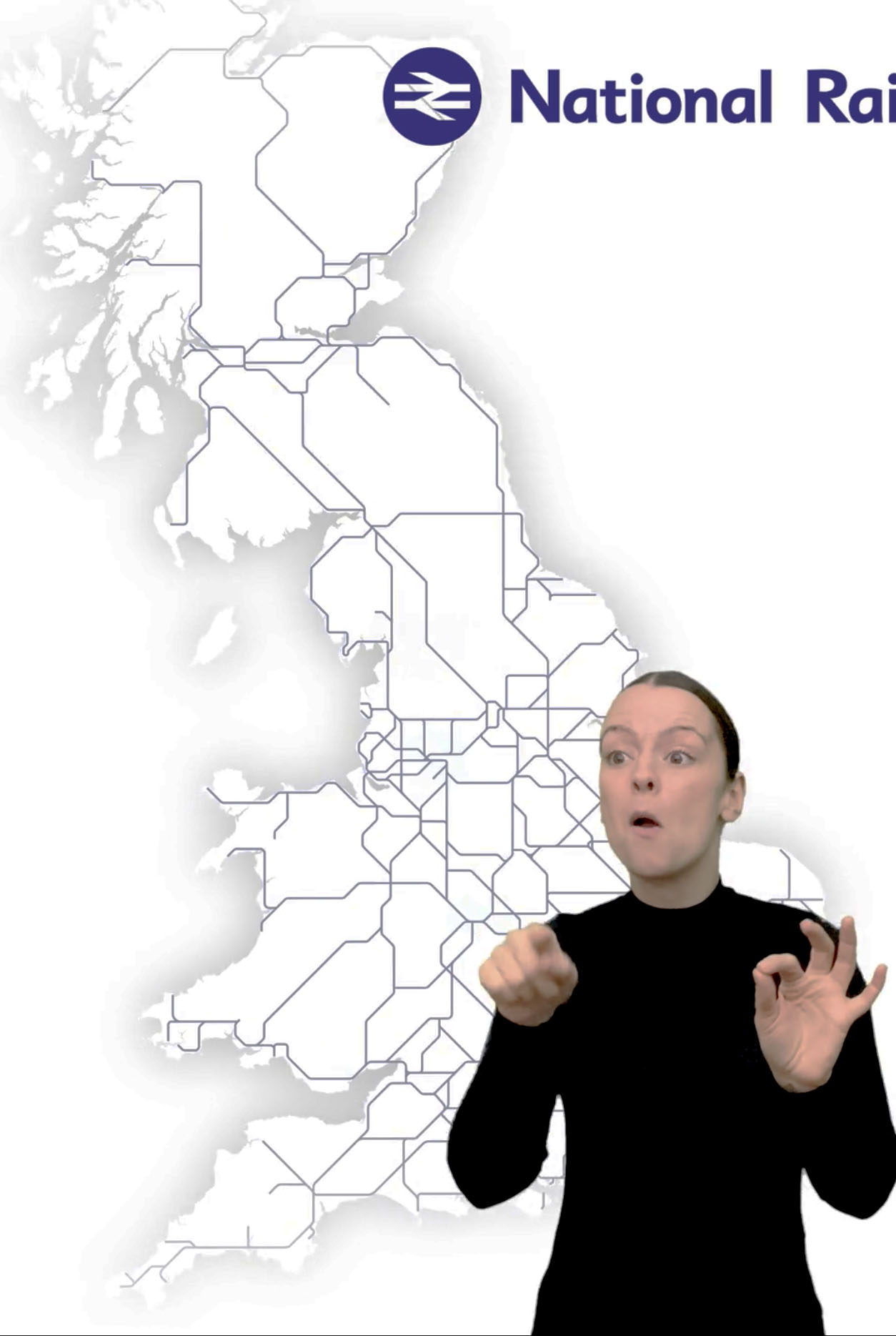

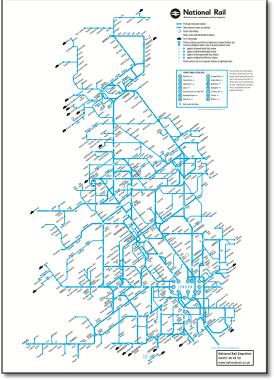

National Rail train map National Rail train map National Rail train map small 2015 National Rail train map small 2015

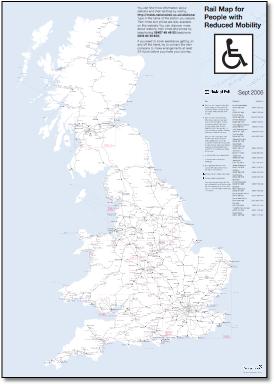

Now with wheelchair symbols.

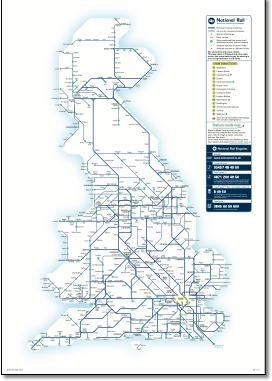

As it hasn't been updated since 2015, its fallen behind in network developments:
No Okehampton branch;
No Ebbw curve to Newport;


Now with Tweedbank.

National Rail train map National Rail train map small 2015
Network outline   Network outline
National Rail train map National Rail train map

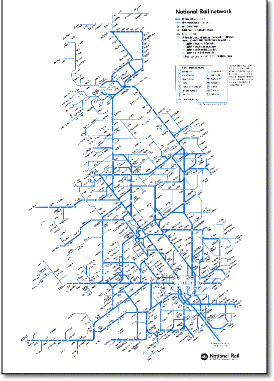

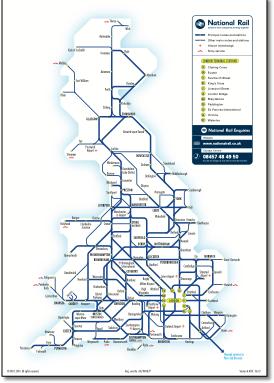

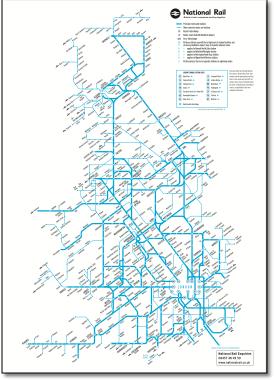

Oh dear, what an ugly creation this new 'official' map is. Just quickly, not in any order:

Wemys Bay branch junction wrong;
Corby branch junction wrong;
Snow Hill font larger than New Street? Ditto Exeter Central larger than St Davids;
Ipswich blob positioning;
Canon Street crossing over Blackfriars route;
Basingstoke line exits Reading from the west not the east;
3 stations at Ashford?;
No indication of Javelin routes;
No indication of Grand Central routes;
Llanelli junction wrong;
Runcorn East not shown (in relation to 'two station' symbol);
East Kilbride/Neilston relationship wrong;
Prestwick Airport is not an important station;
Nottingham shown too far to the east;
Multiple stations at Barry, Rugeley and Lichfield not indicated;
No Liverpool South Parkway;
Stratford-on-Avon - Solihull curve not shown;
Many, many missing lines;
The two Burnley stations are not both on the Preston line;
Accrington wrong side of Colne line junction;
Kensington - GWML link does not have a service.

Inconsistent indication of routes at stations:
Newcastle (south to east curve shown but no service in practice);
Ely (curves shown) but Peterborough (no curves shown);
Leicester (west to north curve shown but no service in practice);
Station on Brighton curve?;
Exeter (east to south curve shown but no service in practice);
Bristol (north to east curve shown but no service in practice);
Sheffield (do services using south curves call?).

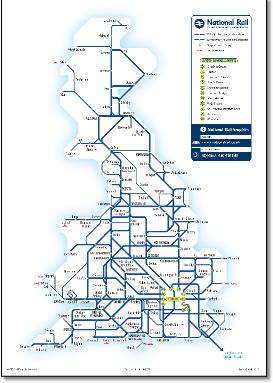

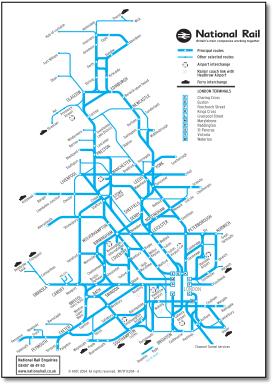

Small version

Basingstoke line runs from east of Reading instead of west
No Warrington or Wigan
Stoke / Derby / Birmingham bears no relationship to reality
Why does Chester - Shrewesbury join the Aberystwyth line?
Why include Stratford to Southend via c2c?
What happens at Ely and Exeter, do trains miss the station on the curved lines?
No Javelin link from St Pancras to Kent


National Rail train map National Rail train map
National Rail train map National Rail train map
Network outline
 Merseyrail
Network outline    Merseyrail
National Rail train map National Rail train map  Merseyrail National Rail train map
National Rail train map National Rail train map
National Rail train map

High Speed 1 into St Pancras: Very confusing around north and east London with sharp curves running over the junctions of other lines; no Ebbsfleet - more important to Eurostar than Ashford.

Thameslink into the new St Pancras station box: There appears a new line connecting St Pancras to an unnamed station on the Thameslink line. A poor attempt at relocating the Thameslink station using the symbol for a railway line.

Fort William: Junction changed from correct layout to a right-angled shape - why?

Settle & Carlisle line angle: The new angle of this line has no match anywhere on the map (while the final connection into Leeds is at the original angle); it also makes the connections to Lancaster and Clitheroe wrong, and where's Hellifield? What was previously correct is now wrong.

Glasgow - Perth: Why straighten Glasgow - Perth when Edinburgh - Perth is an equally important route (also providing Perths direct connection to London).

Chiltern line straightening: The Chiltern line is straighter but only at the expense of the Coventry connection, which is now worse for Cross Country.

1 Inconsistency at junction stations. Some lines approach correctly, some approach from the wrong direction (Reading, London Bridge) and some radiate like stars (Bristol, Leeds, Leicester).

2 No indication of route options when lines cross between stations.

3 CTRL (to Waterloo) shown as a completely segregated railway when it is not.

4 Confusing (and unnecessary) geographic distortion; eg Birkenhead directly south of Liverpool when it is west just over the Mersey, Mallaig north of Fort William when it is west.

5 London and the South-East perspective: misrepresentation of Scotland in relation to England, over-large space between Yorkshire and Lancashire giving ‘strung-out’ effect. Poor use of space, map doesn’t fill width of sheet.

6 Inconsistent level of detail: Liverpool Wirral lines loop and Welsh Valleys but few Glasgow suburban lines; Walsall and Windsor but no Stratford or Pontefract; Birmingham University but no Swinton Interchange.

7 Poor cartography, lacking quality in execution, odd choice of 37.5º; strange coast line with Isle of Wight shown as a triangle when it looks like a diamond.

8 Major routes like Birmingham-Poole, South Coast etc., do not look likely routes.

9 Enlargement of the London and Birmingham networks has necessitated a bad kink into the Chiltern main line at Banbury.

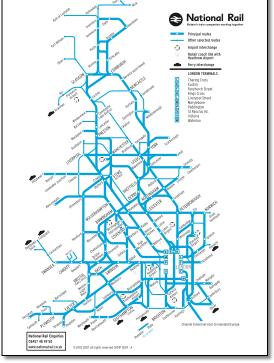

The recently seen 2008 version (on the National Rail website) has High Speed 1 (Ashford - St Pancras) crudely added on. Note 'International' unnecessarily abbreviated to 'Int.' in the key.

The airport symbols have probably gone wrong and are too fine, especially compared to the over-large ship symbol.

Channel Tunnel services to mainland Europe is now just 'Channel Tunnel services'. Is that a new marketing title?

Where the map has failed to prevent station names crossing over lines, two conventions are used, light blue behind Nottingham but white behind Birmingham and Coventry. Oxenholme joins the gang as a result of the only other change on the map, the straightening of the Settle & Carlisle.

 Merseyrail
National Rail network map 2002
Network outline
Network outline
Network outline
 Merseyrail
Map87Dicon
National Rail train map

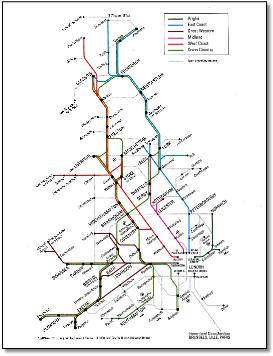

National Rail train map InterCity train rail map
InterCity train rail map

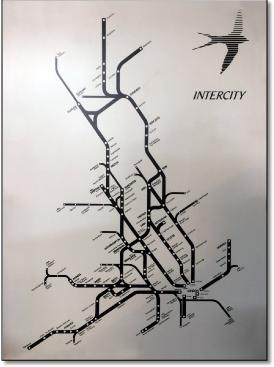

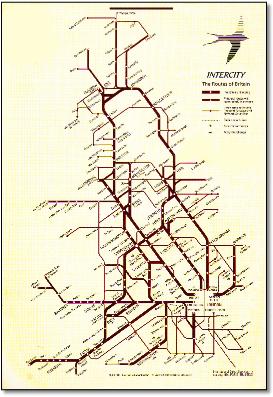

I think this is a very early, if not the first, version of this map. I can just recall a press release in Design Week saying that it was amazing as it looked like the UK.

Now a venerable 18 years old. And still used by ATOC.

Somebody at ATOC did tell me that the Scots really didn't like the shape of Scotland.

Didn't make much effort with the Far North Line, indicating its existence rather than actually showing it.

A basic mistake was to not get the north/south alignment of the Lancashire and Yorkshire urban networks aligned correctly such than the overall balance is wrong and that interconnecting lines have to make contortions.

Actually, you can see a design attempt to organise London stations into a grid, but Victoria and Charing Cross should both have been closer to the centre line to get the 'centre of gravity' right - and they could have been.

Suggests Peterborough - Norwich is not via Ely. All captions at an angle except London, although all stations named in position - good! Grudgingly, does give an overview of the network reasonably well (you can see the north east/south west axis!).

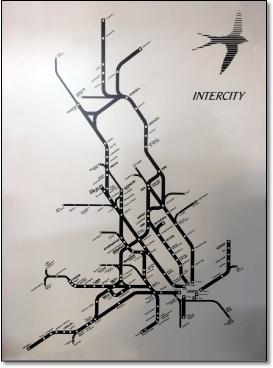

InterCity train rail map

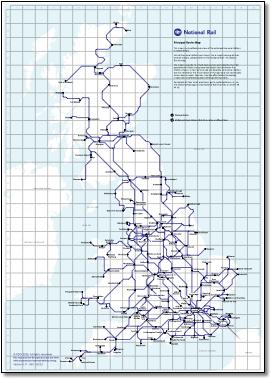

National Rail train map

This map made sense when it was a printed sheet with the enlarged complex areas on the back. It did act as the definitive map - it was totally accurate and an indispensable reference tool.

But on its own, looked at on the National Rail website, it doesn't really work. Vast areas do not have any detail and you have to find those other files yourself. And then, lo!, you suddenly have a different schematic style. More thought could be put into this, you could so easily click on the main map to open up the other maps. Or put them alongside on the same document. No thought for the user.

The main change on the 2008 map is the addition of the Ebbw Vale branch. This is badly drawn, looking like it comes off the South Wales Main Line at Cardiff rather than just to the west of Newport - this is, after all, a geographic map. High Speed One (the channel tunnel rail link) is also a bit of a mess, not even going to St Pancras (served since November 2007). Also added is the Allington chord at Grantham. Doesn't show Alloa reopening.

Cheaply done by someone who doesn't understand the subject. Shame on you Pindar.

It's not worth conducting a full design audit for this map as it is so poorly executed, but just for starters as I've noticed them:

• Doesn't show the Swansea or Barrow avoiding lines, yet shows the Ely curve, Dore south curve, and the Clitheroe - Hellifield line (no regular trains).

• Four North Staffordshire stations are out of register.

• Romsey line joins at Eastleigh unclearly.

National Rail train map

Front side (shown) is based on a geographic map and shows track detail unnecessary for the user as follows:

• Shows unnecessary flying junctions at Aynho, Colchester, Brookwood, Alexandra Palace, Shenfield, Taunton, Weaver and including a non-existent flyover at Hitchen;
• Shows unnecessary goods lines at Ely and Newport yet doesn't show Barrow cut-off;
• Shows unnecessary flyovers at Norwich and Inverness;
• Shows unnecessary separation of up and down lines at Saunderton, duplicated line out of Euston to north of Watford, separated lines north of Milton Keynes;
• Strange arrangements at Newcastle where Carlisle line comes in, unclear what is happening at St Budeaux, shows Dunbar on a loop off the main line, shows a non-existent connecting line at Retford;
• Shows unnecessary by-passes at Frome and Westbury;
• Shows many triangular junctions but not at Bare Lane;
• Patronising text, for example the childish 'Lines like this show where ferries go'.

On the front main map ferry routes are shown, but on the back they disappear from the detailed schematic maps except on the Scottish one.

National Rail train map
Network outline
Map87Dicon
 Merseyrail
InterCity train rail map
 Merseyrail
 Merseyrail  Merseyrail

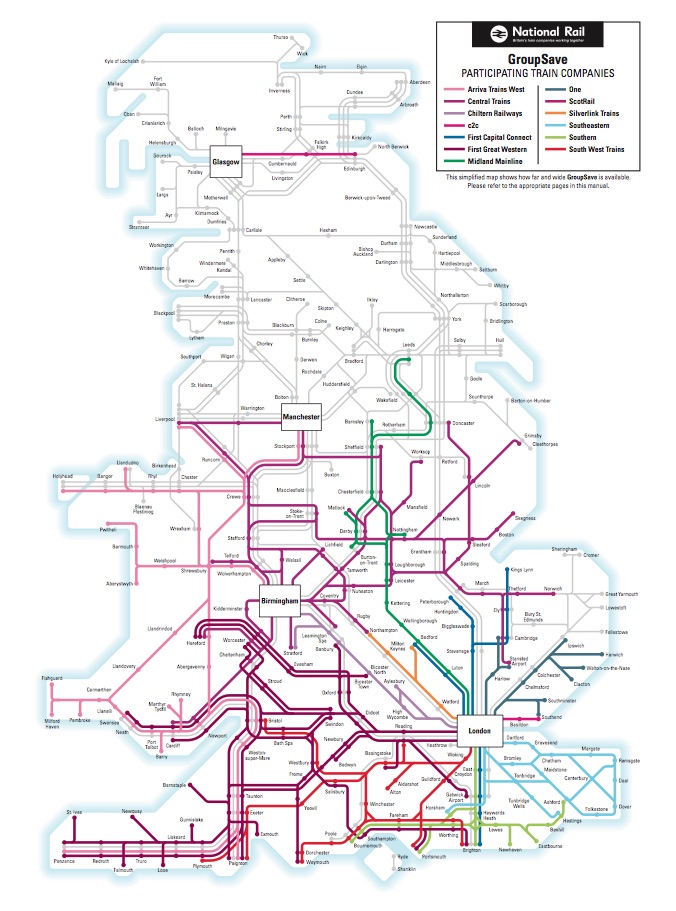

InterCity train rail map InterCity train rail map GB NR Group save map

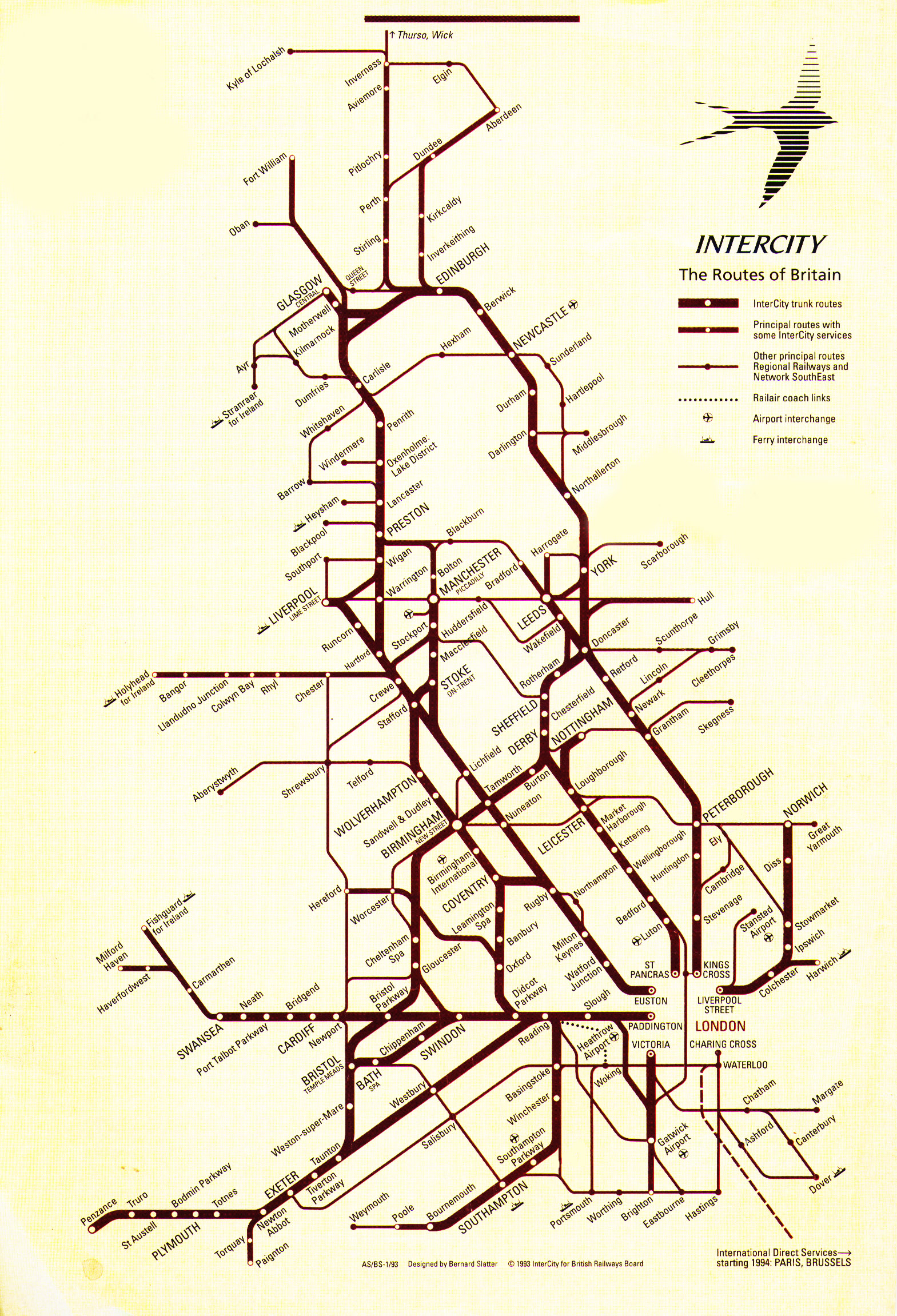

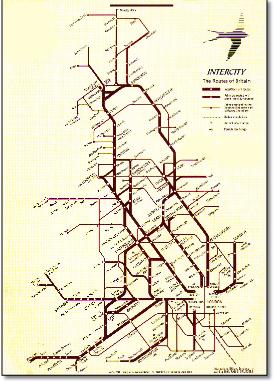

Inter City map 1993

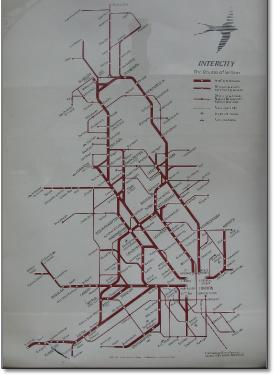

InterCity train rail map
